Descripción

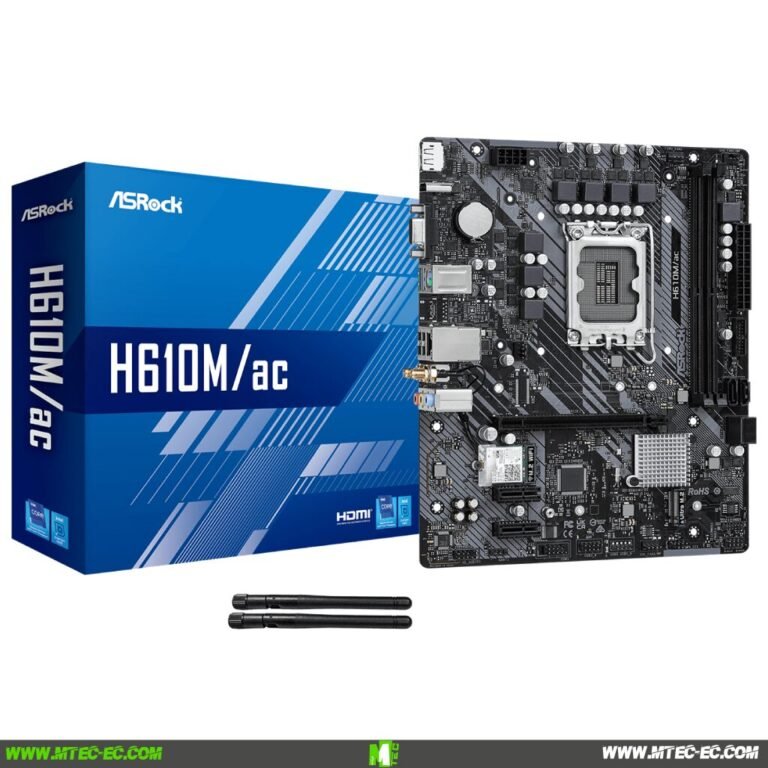

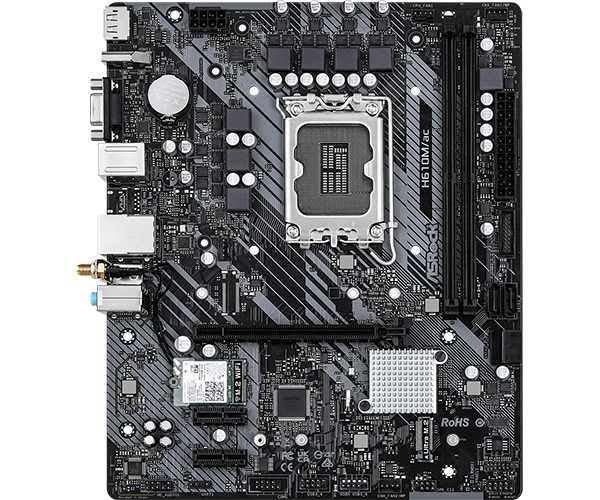

• Asrock H610M AC Mainboard Intel LGA1700 Wifi
• CPU Supports 14^th, 13^th & 12^th Gen Intel^® Core™ Processors (LGA1700)
• Chipset  Intel^® H610
• Memory   Dual Channel DDR4 Memory Technology  2 x DDR4 DIMM Slots
• Audio  7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
• Gigabit LAN 10/100/1000 Mb/s
• Wireless LAN  802.11ac WiFi Module
• Supports Bluetooth 4.2 / 3.0 + High speed class II
• Connector
  – 1 x COM Port Header
  – 1 x SPI TPM Header
  – 1 x Chassis Intrusion and Speaker Header
  – 1 x CPU Fan Connector (4-pin)*
  – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
  – 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
  – 1 x 24 pin ATX Power Connector
  – 1 x 8 pin 12V Power Connector
  – 1 x Front Panel Audio Connector
  – 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)

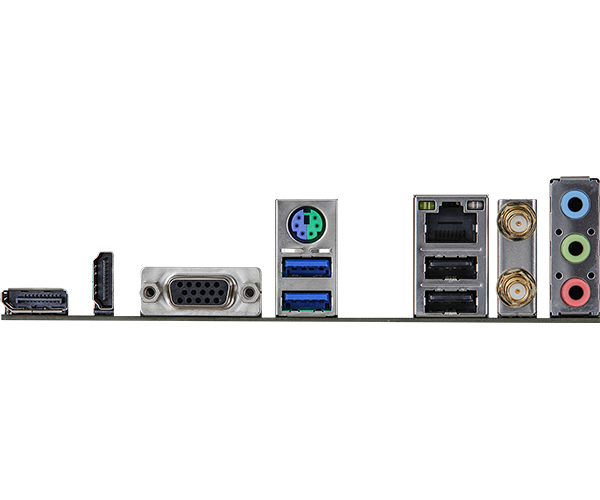

• Rear Panel I/O
  – 2 x Antenna Ports
  – 1 x PS/2 Mouse/Keyboard Port
  – 1 x D-Sub Port
  – 1 x HDMI Port
  – 1 x DisplayPort 1.4
  – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  – 2 x USB 2.0 Ports (Supports ESD Protection)
  – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  – HD Audio Jacks: Line in / Front Speaker / Microphone
• Accessories
  – I/O Shield
  – 2 x SATA Data Cables
  – 2 x ASRock WiFi 2.4/5 GHz Antennas
  – 1 x Screw for M.2 Socket
• Form Factor – Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
• OS  Microsoft Windows^® 10 64-bit / 11 64-bit
