Descripción

• CPU AMD Socket AM5 Ryzen™ 7000 Series Processors
• Chipset AMD X670
• Memory
• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buffered memory up to 6600+(OC)*
• Max. capacity of system memory: 192GB
• Graphics
• Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
• Audio
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
• LAN
  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Slots
• CPU:
  • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
  • 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
• Chipset:
  • 1 x PCIe 4.0 x1 Slot (PCIE2)*
  • 1 x PCIe 4.0 x16 Slot (PCIE4), supports x1 mode*
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  • Supports AMD CrossFire™
• Storage
• CPU:
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
• Chipset:
  • 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
  • 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*
  • 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 4 x SATA3 6.0 Gb/s Connectors
• Supports ASRock U.2 Kit
• RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
• Connector
  • – 1 x SPI TPM Header
  • – 1 x Power LED and Speaker Header
  • – 1 x RGB LED Header*
  • – 3 x Addressable LED Headers**
  • – 1 x CPU Fan Connector (4-pin)***
    – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  • – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  • – 1 x 24 pin ATX Power Connector
  • – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  • – 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
  • – 1 x Front Panel Audio Connector
  • – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  • – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)

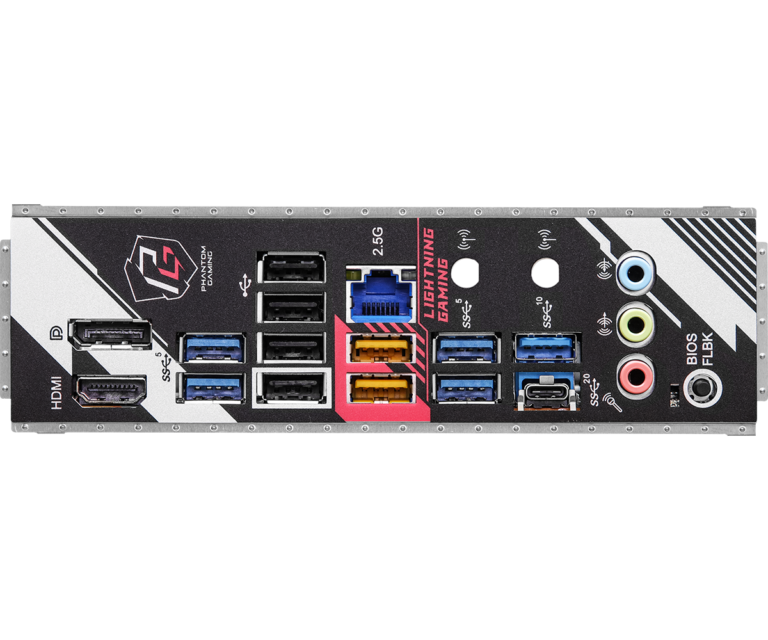

  • Rear Panel I/O
  • – 2 x Antenna Mounting Points
  • – 1 x HDMI Port
  • – 1 x DisplayPort 1.4
  • – 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
  • – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
  • – 6 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports)
  • – 4 x USB 2.0 Ports
  • – 1 x RJ-45 LAN Port
  • – 1 x BIOS Flashback Button
  • – HD Audio Jacks: Line in / Front Speaker / Microphone
• Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
• OS Microsoft® Windows® 10 64-bit / 11 64-bit
