Descripción

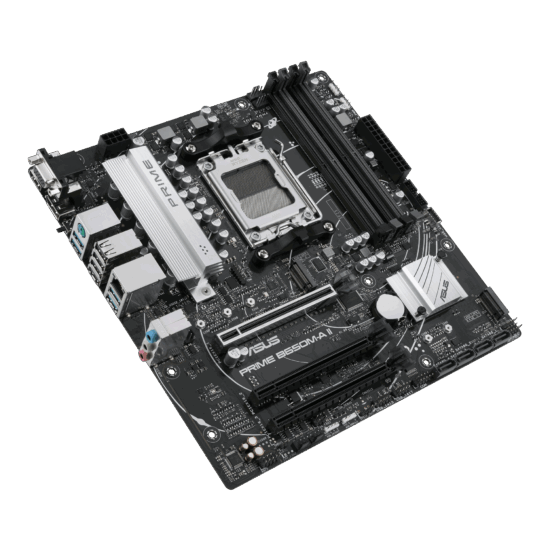

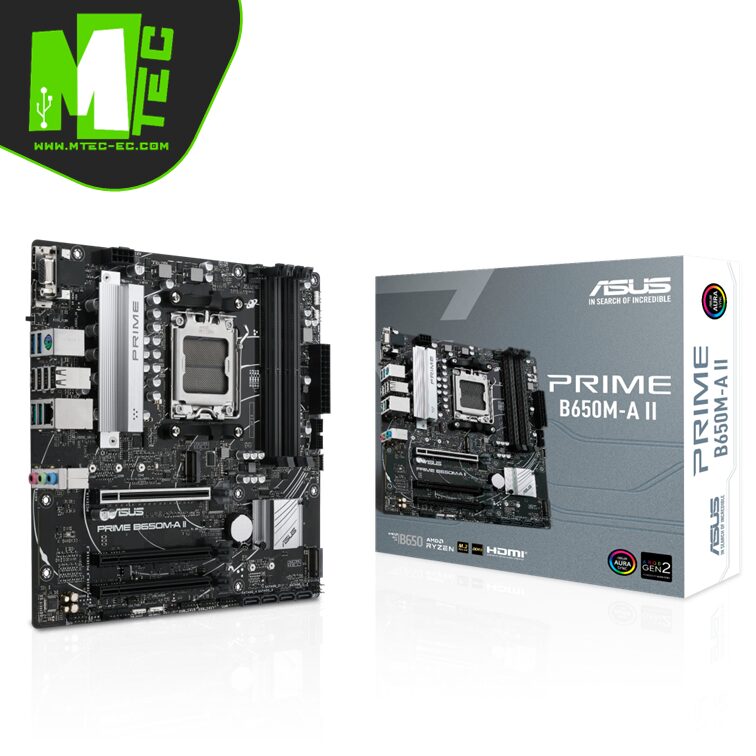

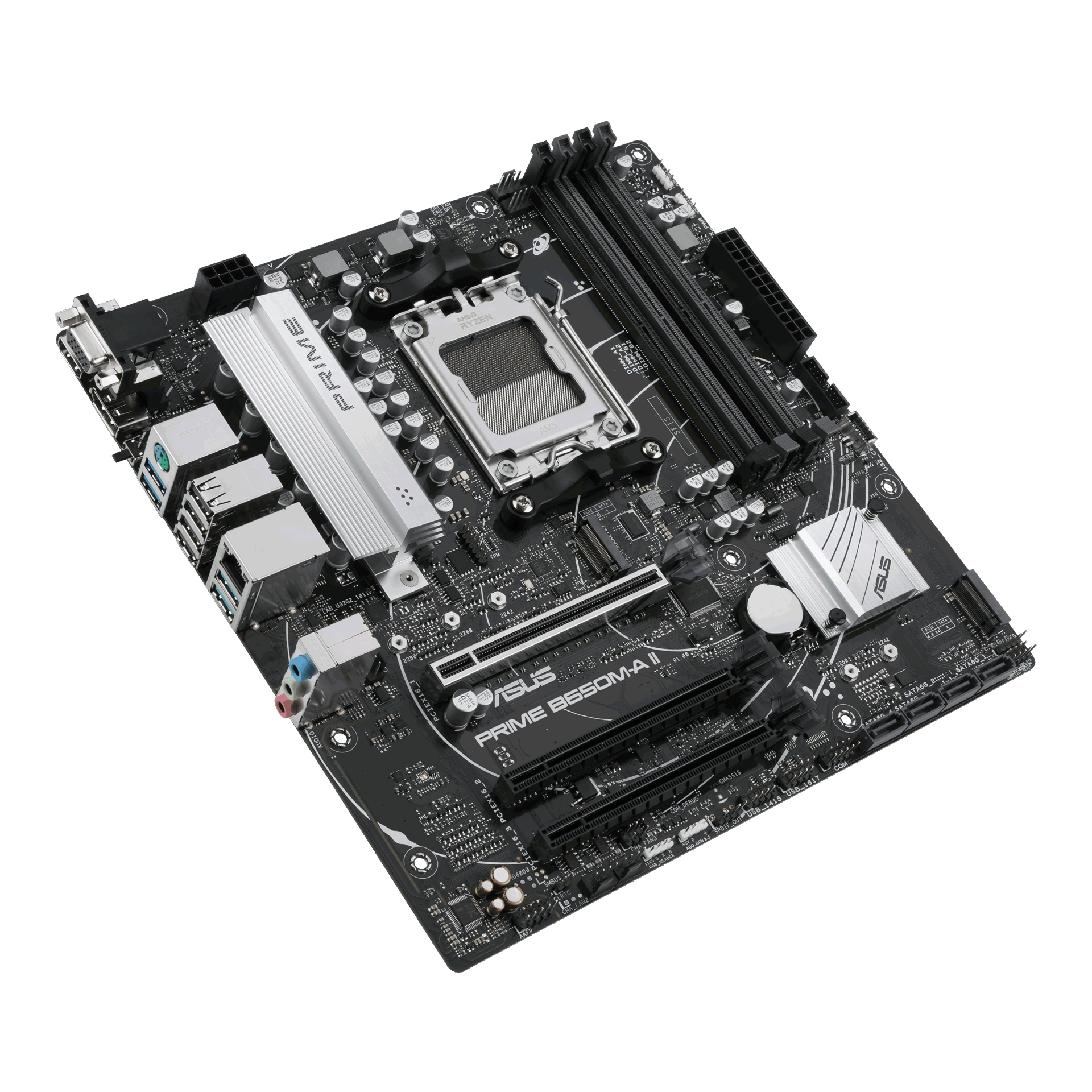

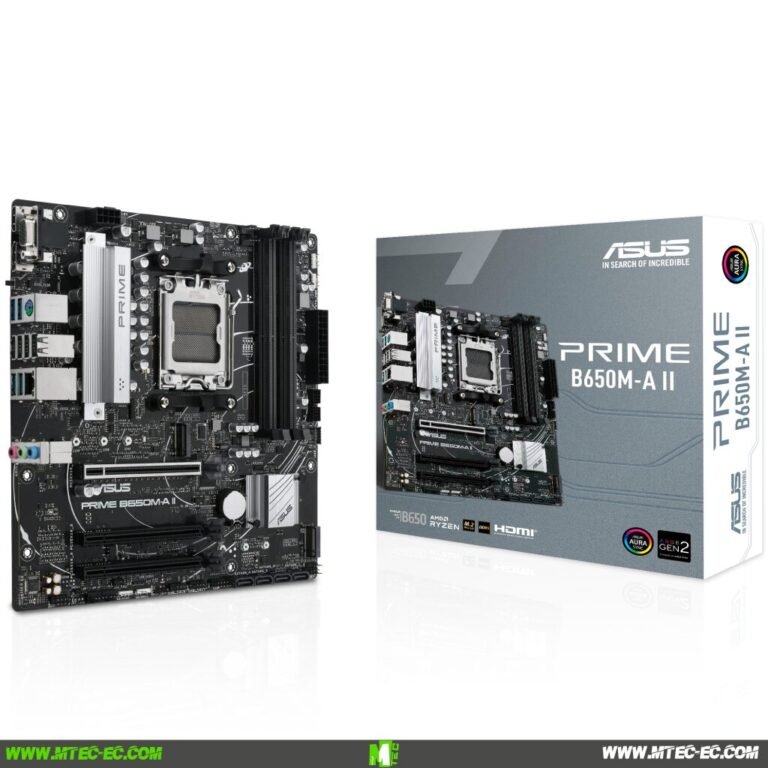

• Asus Prime B650M-A II
• CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
• Chipset AMD B650 Chipset
• Memory 4 x DIMM, Max. 128GB, DDR5
• Graphics
  • 1 x DisplayPort
  • 1 x VGA port
  • 1 x HDMI® port
• Expansion Slots
• AMD Ryzen™ 7000 Series Desktop Processors
  • 1 x PCIe 4.0 x16 slot (supports x16 mode)
• AMD B650 Chipset
  • 2 x PCIe 4.0 x16 slots (support x1 mode)
• Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
• AMD Ryzen™ 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• AMD B650 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
• Ethernet 1 x Realtek 2.5Gb Ethernet
• Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*

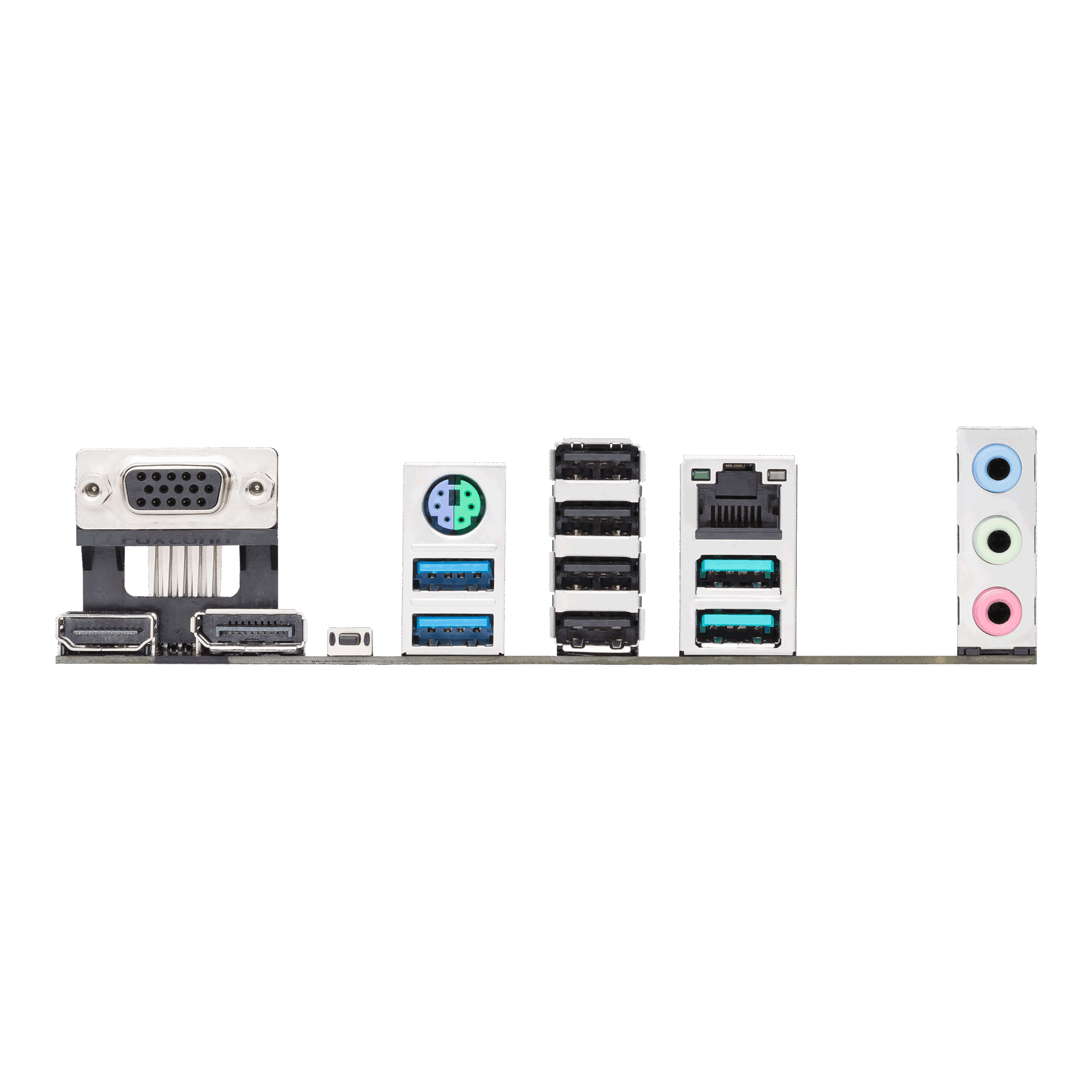

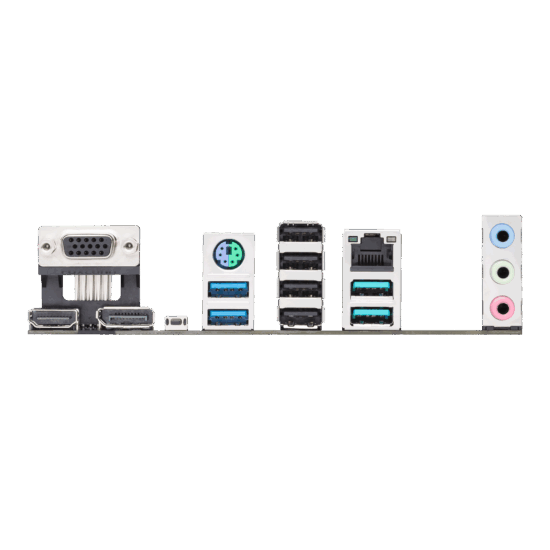

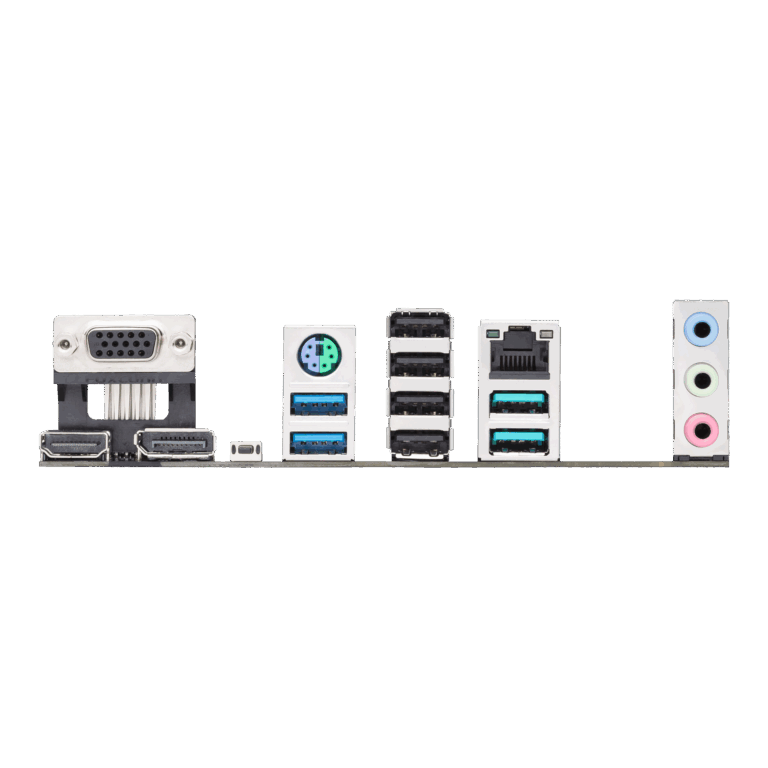

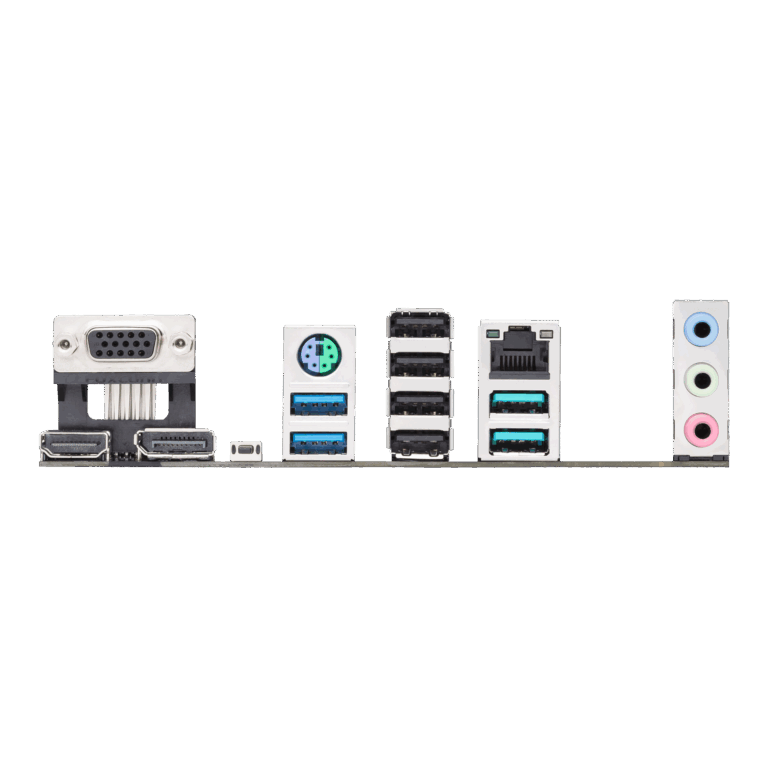

• Back Panel I/O Ports
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x VGA port
  • 1 x HDMI® port
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x BIOS FlashBack™ button
  • 1 x PS/2 Keyboard/Mouse combo port
• Operating System Windows® 11, Windows® 10 64-bit
• Form Factor mATX Form Factor
