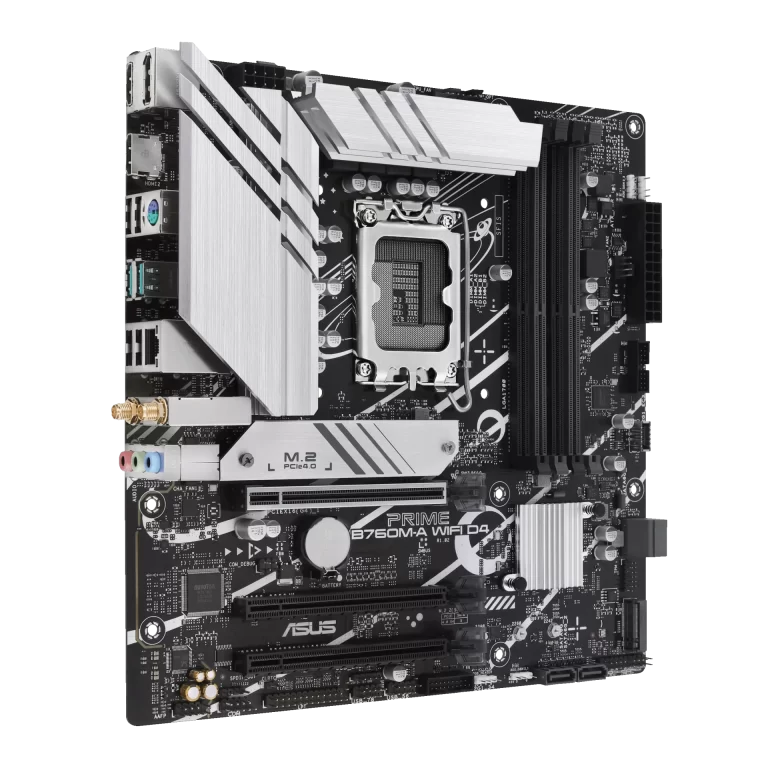

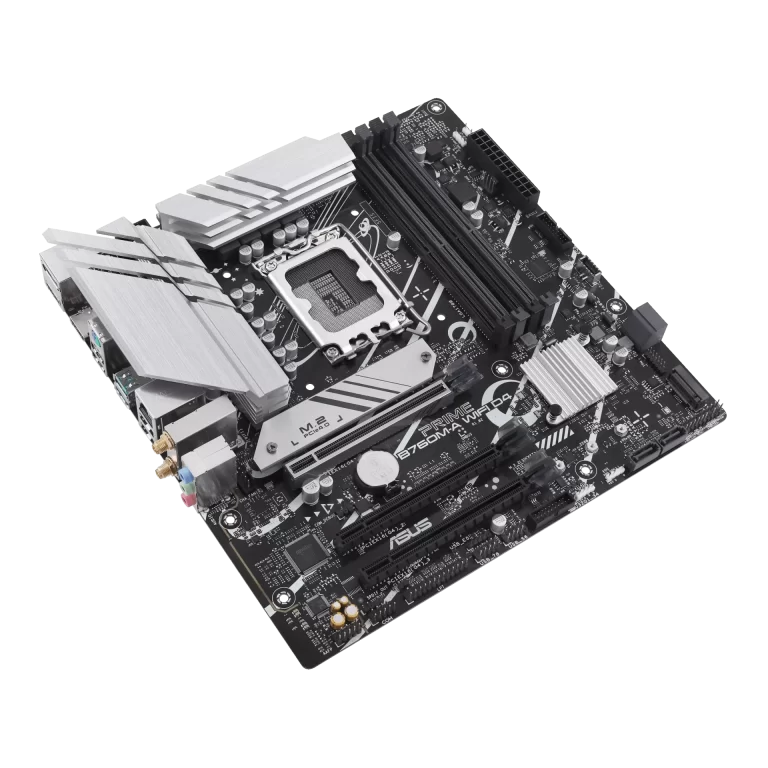

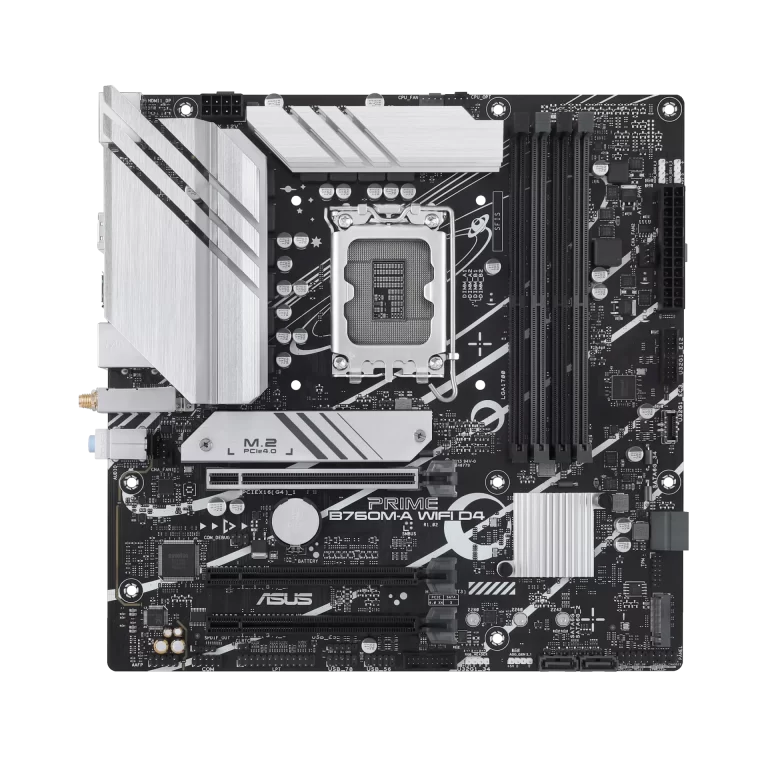

Asus Prime B760M-A WIFI D4 Mainboard Intel LGA1700

Descripción

Asus Prime B760M-A WIFI D4

CPU Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Chipset Intel® B760 Chipset
Memory 4 x DIMM, Max. 128GB, DDR4
Graphics
- 1 x DisplayPort**
- 2 x HDMI® ports***
Ethernet 1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
- Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Bluetooth v5.2

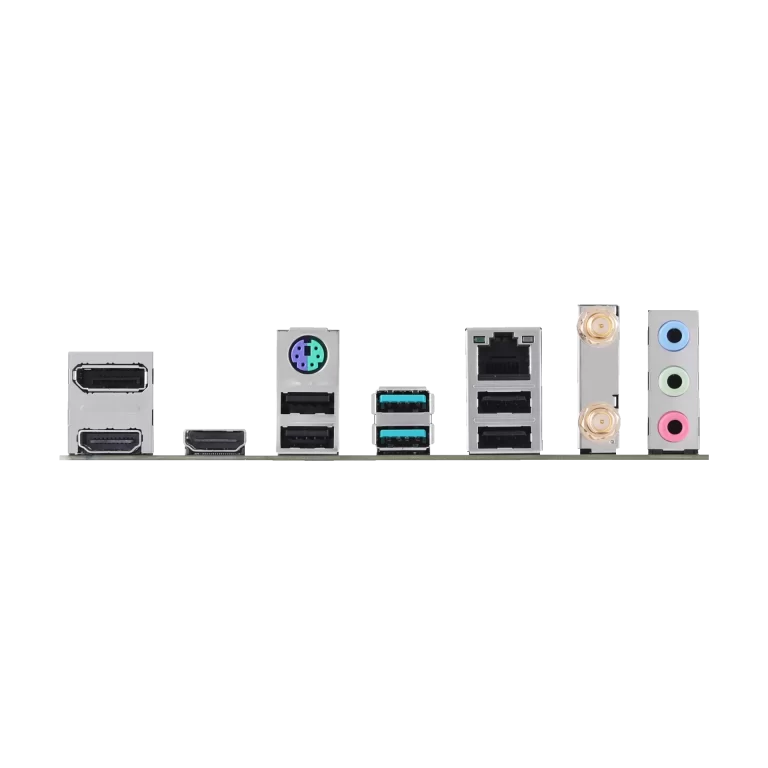

Back Panel I/O Ports
- 2 x USB 3.2 Gen 2 ports (2 x Type-A )
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 2 x HDMI® ports
- 1 x Wi-Fi Module
- 1 x Realtek 2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 2 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- 1 x USB 2.0 header supports 1 additional USB 2.0 port
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x LPT header
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1pin)
- 1 x 20-3 pin System Panel header with Chassis intrude function

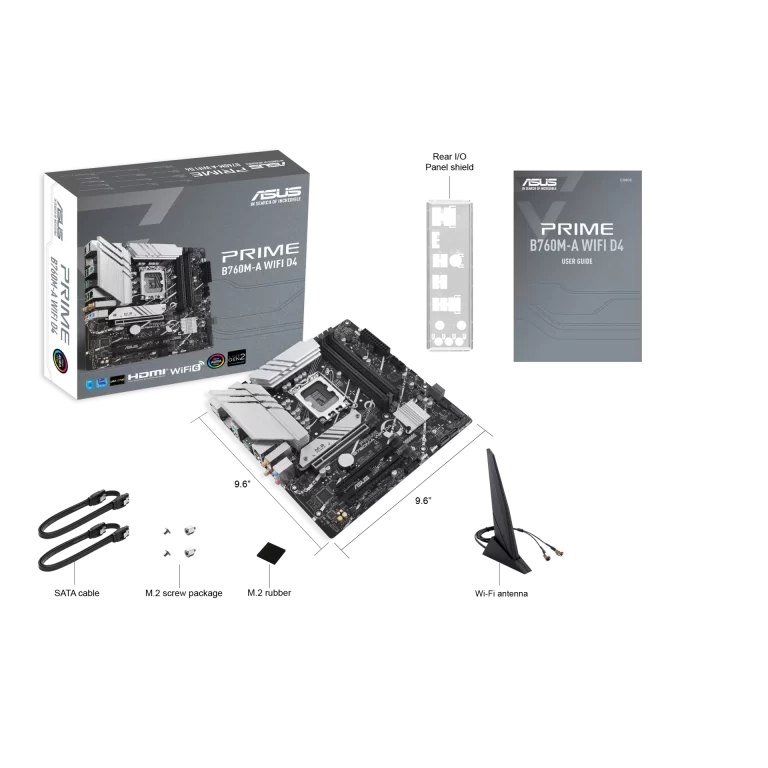

Accessories
Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x ASUS Wi-Fi moving antennas
- 1 x I/O Shield
- 1 x M.2 Rubber Package
- 1 x Screw package for M.2 SSD
Documentation
- 1 x User guide
Operating System Windows® 11, Windows® 10 64-bit
Form Factor mATX Form Factor
