Descripción

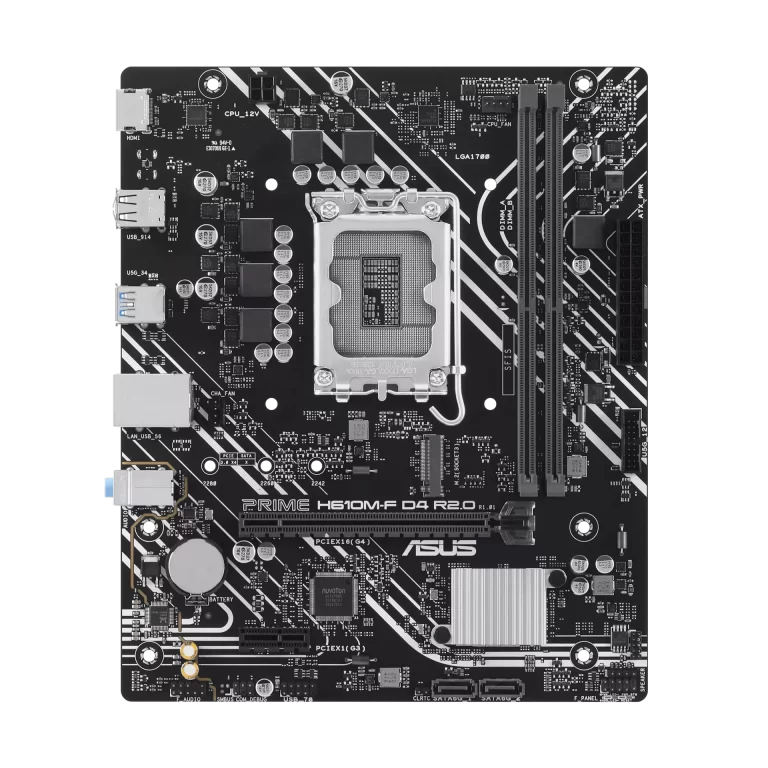

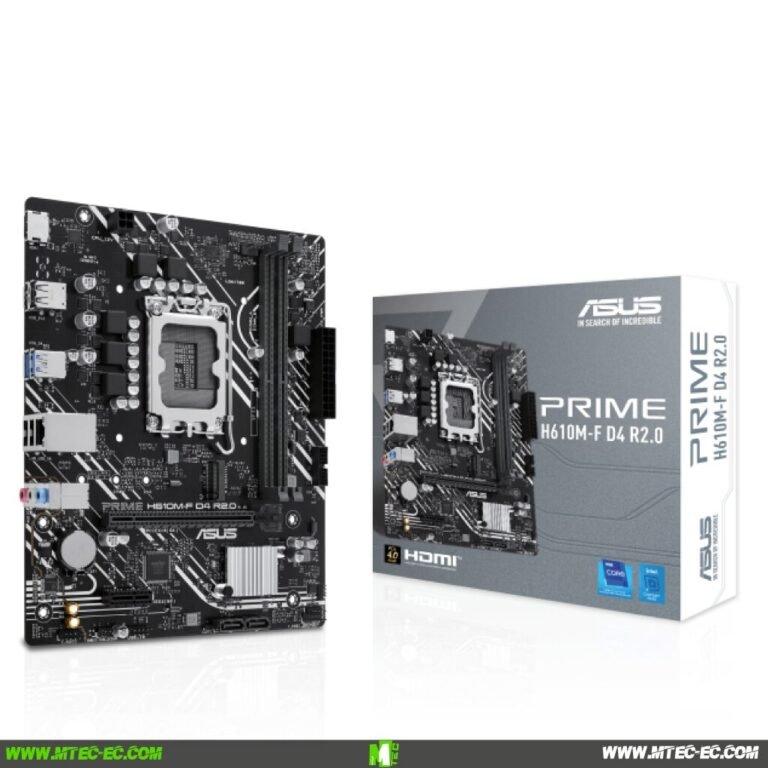

- Asus Prime H610M-F D4 R2.0
- CPU Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
- Chipset ntel® H610 Chipset
- Memory x DIMM slots, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
- Ethernet x Realtek 1Gb Ethernet
- Audio ealtek 7.1 Surround Sound High Definition Audio CODEC*

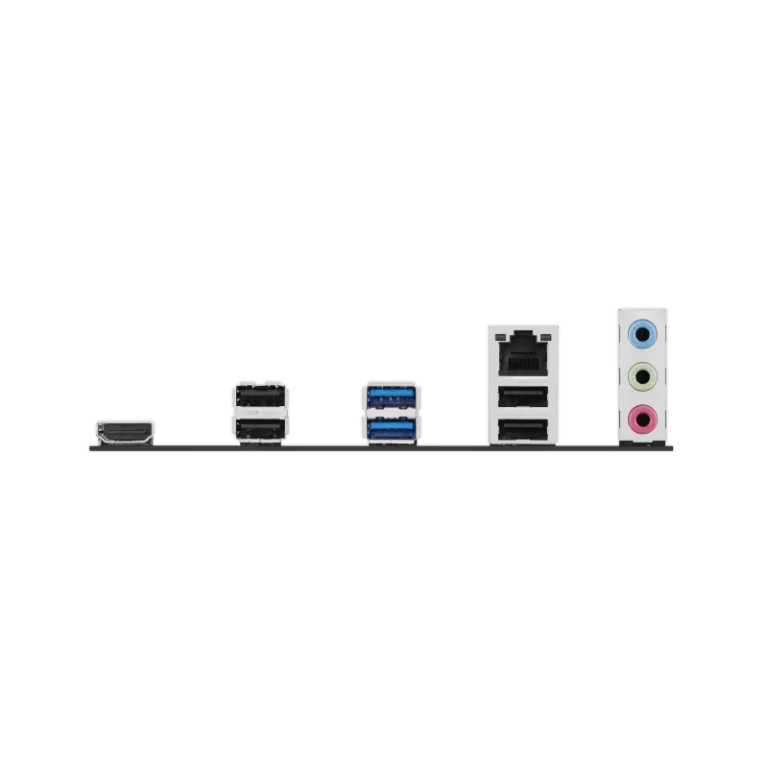

- Back Panel I/O Ports
- 2 x USB 5Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x HDMITM port
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- Internal I/O Connectors
- Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin Chassis Fan header
- Power Related
- 1 x 24-pin Main Power connector
- 1 x 4-pin +12V Power connector
- Storage Related
- 1 x M.2 slot (Key M)
- 2 x SATA 6Gb/s ports
- USB
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 1 x USB 2.0 header supports 2 additional USB 2.0 ports
- Miscellaneous
- 1 x Clear CMOS header
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x Speaker header
- 1 x 10-1 pin System Panel header

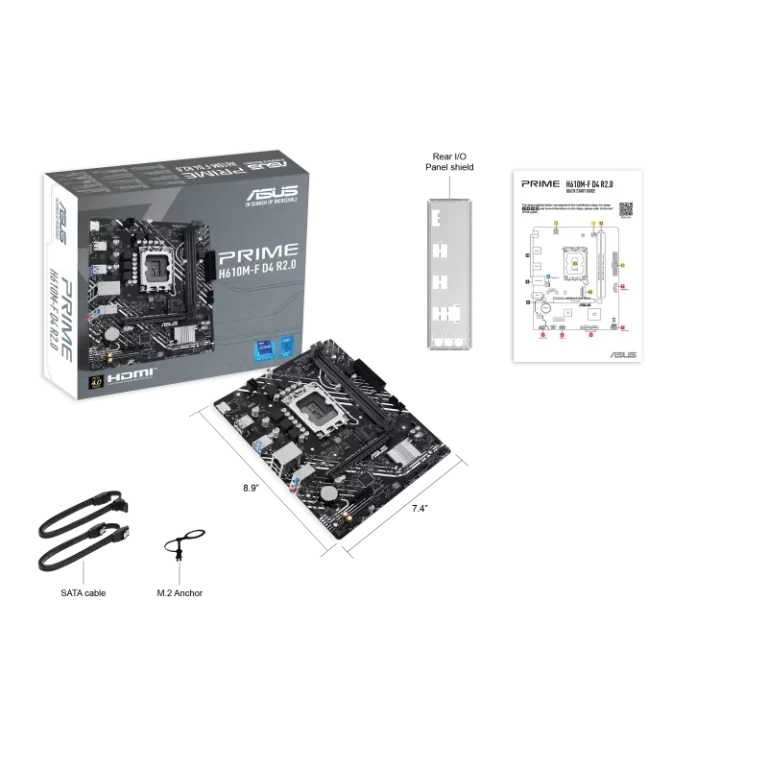

- Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x I/O shield
- 1 x M.2 anchor
- Documentation
- 1 x Quick start guide
- Operating System Windows® 11 , Windows® 10 64-bit
- Form Factor micro-ATX Form Factor
