Descripción

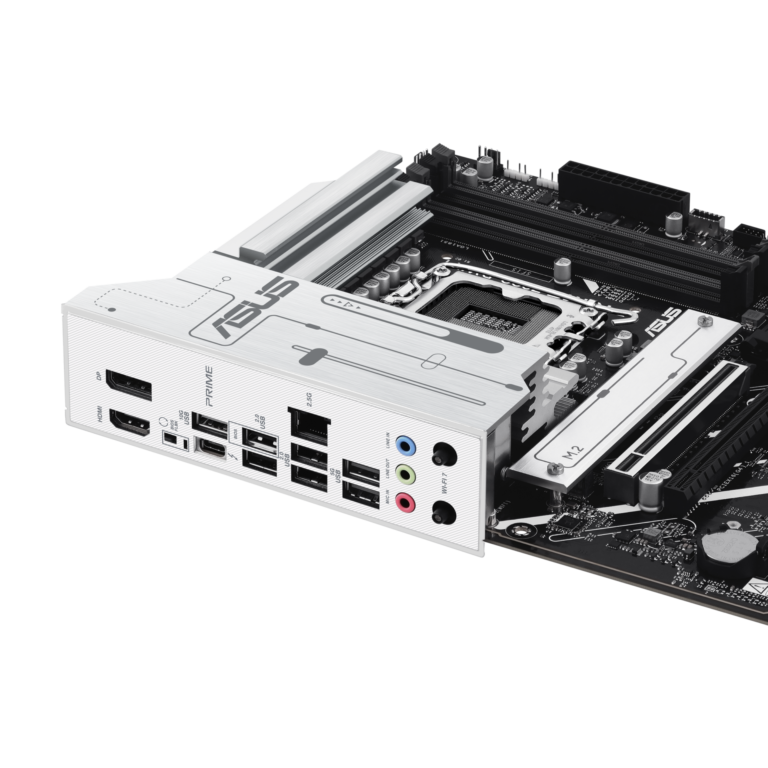

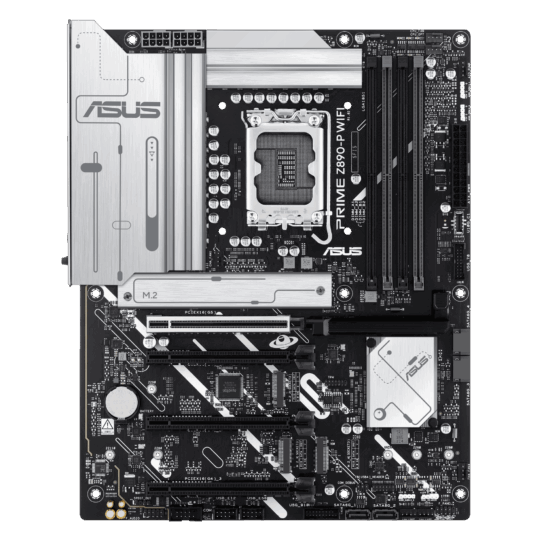

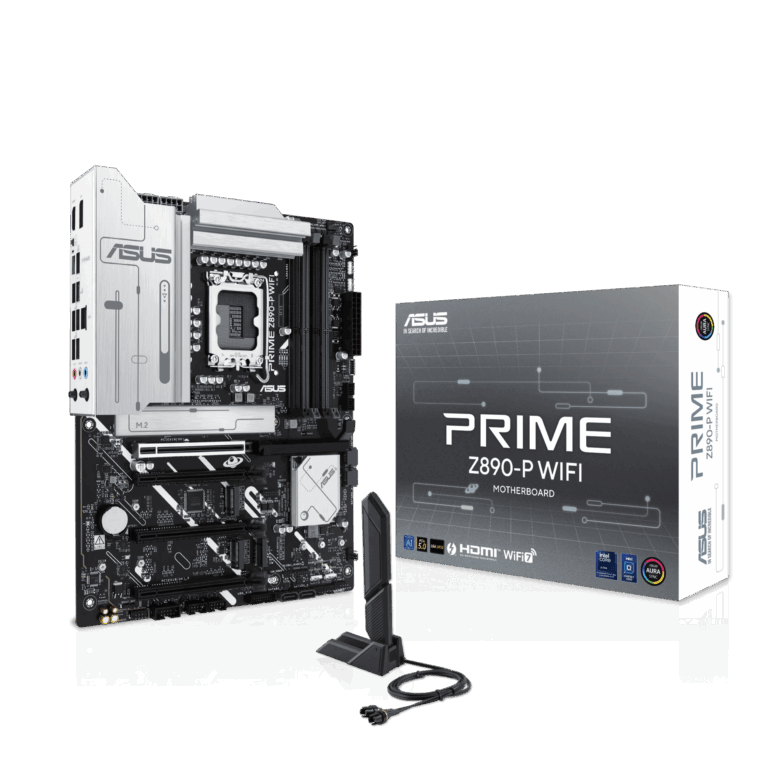

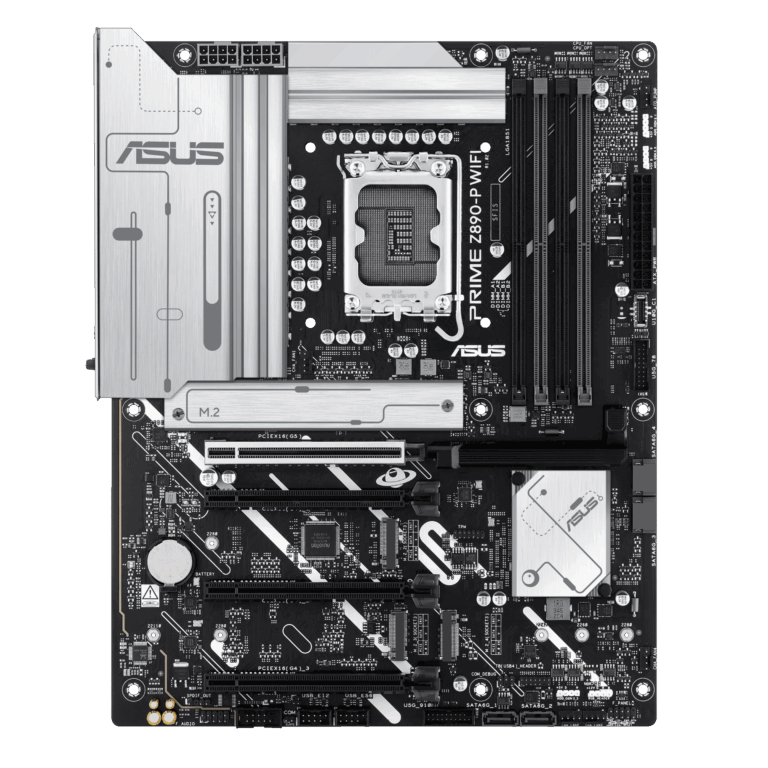

- Asus Prime Z890-P WIFI
- CPU Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
- Chipset Intel® Z890 Chipset
- Memory 4 x DIMM slots, max. 192GB, DDR5
- Graphics
- 1 x DisplayPort**
- 1 x HDMITM port***
- 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs****
- Ethernet 1 x Realtek 2.5Gb Ethernet
- Wireless & Bluetooth
- Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be)
- Bluetooth® v5.4***
- Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*

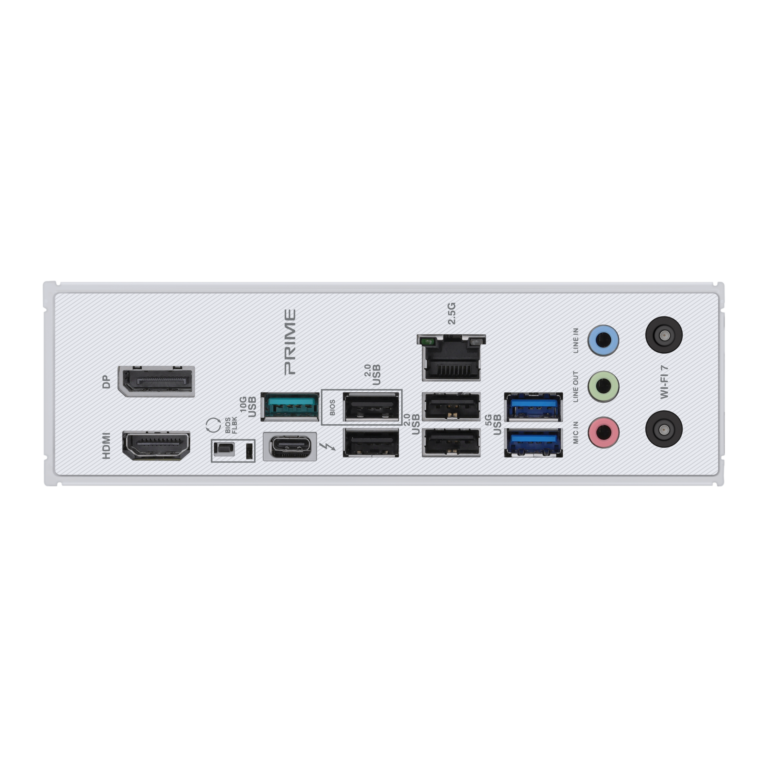

- Back Panel I/O Ports
- 1 x Thunderbolt™ 4 USB Type-C® port
- 1 x USB 10Gbps port (1 x Type-A)
- 2 x USB 5Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMITM port
- 1 x Wi-Fi module
- 1 x Realtek 2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x BIOS FlashBack™ button
- Internal I/O Connectors
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 2 x 8-pin +12V CPU Power connector
- Storage related
- 4 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 10Gbps connector (supports USB Type-C®)
- 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin Front Panel System header
- 1 x Thunderbolt™ (USB4®) header
- Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x ASUS WiFi Q-Antenna
- 1 x M.2 rubber package
- 2 x Screw packages for M.2 SSD
- Documentation
- 1 x Quick start guide
- Operating System Windows 11 (22H2 & later)
- Form Factor ATX Form Factor 30.5 cm x 24.4 cm
