Descripción

• Asus Rog Strix B760-A Gaming Wifi DDR5
• CPU Intel® Socket LGA1700 for 14th, 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Chipset Intel® B760 Chipset
• Memory 4 x DIMM slots, Max. 192GB, DDR5
• Graphics
  • 1 x DisplayPort**
  • 1 x HDMITM port***

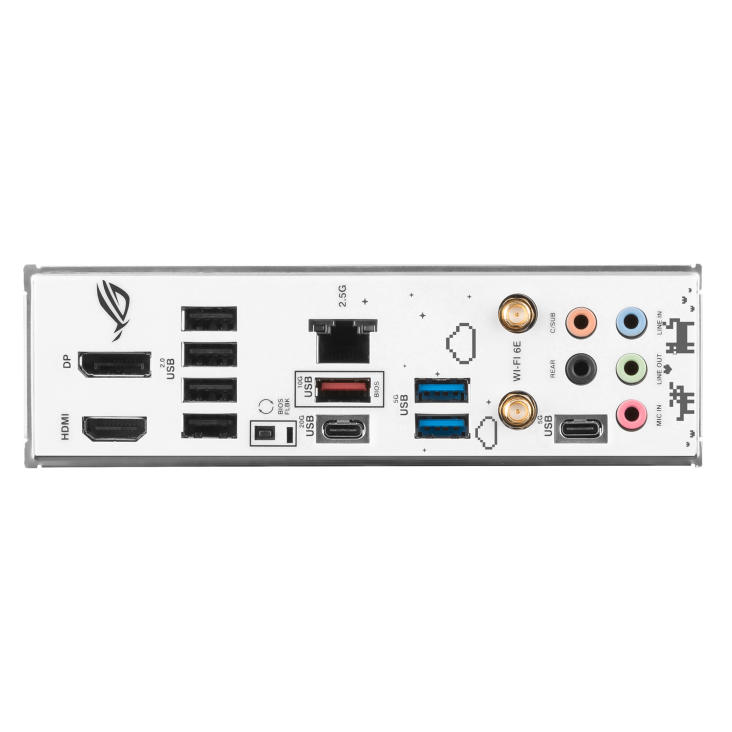

• Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2×2 (20G) port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
  • 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C®)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Wi-Fi Module
  • 1 x Intel® 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x BIOS FlashBack™ button
• Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
• Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
• Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C® )
  • 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  • 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x 20-5 pin System Panel header
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt™ (USB4®) header
• Operating System Windows® 11, Windows® 10 64-bit
• Form Factor ATX Form Factor 30.5 cm x 24.4 cm
