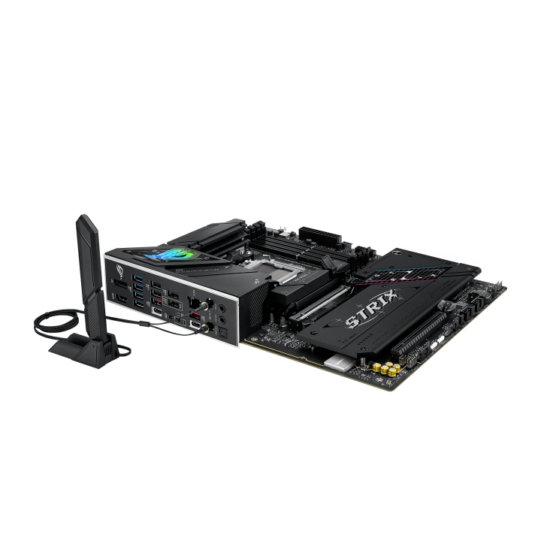

Asus ROG Strix B850-F Gaming WIFI AM5 AMD DDR5 Mainboard

Descripción

Asus ROG Strix B850-F Gaming WIFI
CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Chipset AMD B850 Chipset
Memory 4 x DIMM slots, max. 256GB, DDR5
Graphics
- 1 x DisplayPort*
- 1 x HDMI™ port**
Ethernet 1 x Intel® 2.5Gb Ethernet
Wireless & Bluetooth
- Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be)
- Bluetooth® v5.4***
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
Back Panel I/O Ports
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
- 4 x USB 5Gbps ports (4 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Intel® 2.5Gb Ethernet port
- 2 x Audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack™ button
- 1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
Power Related
- 1 x 24-pin Main Power connector
- 2 x 8-pin +12V CPU Power connector
Storage Related
- 4 x M.2 slots (Key M)
- 2 x SATA 6Gb/s ports
USB
- 1 x USB 10Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x CPU Over voltage jumper
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x Power button
- 1 x 10-1 pin Front System Panel header
- 1 x Thermal Sensor header
- 1 x Thunderbolt™ (USB4®) header
Accessories
Cables 2 x SATA 6Gb/s cables
Miscellaneous
- 1 x ASUS WiFi Q-Antenna
- 1 x Cable ties package
- 1 x M.2 Q-Latch package
- 1 x M.2 Q-Slide package
- 1 x ROG key chain
- 1 x ROG Strix stickers
- 4 x M.2 rubbers
Documentation
- 1 x Quick start guide
Operating System Windows 11
Form Factor ATX Form Factor
