Descripción

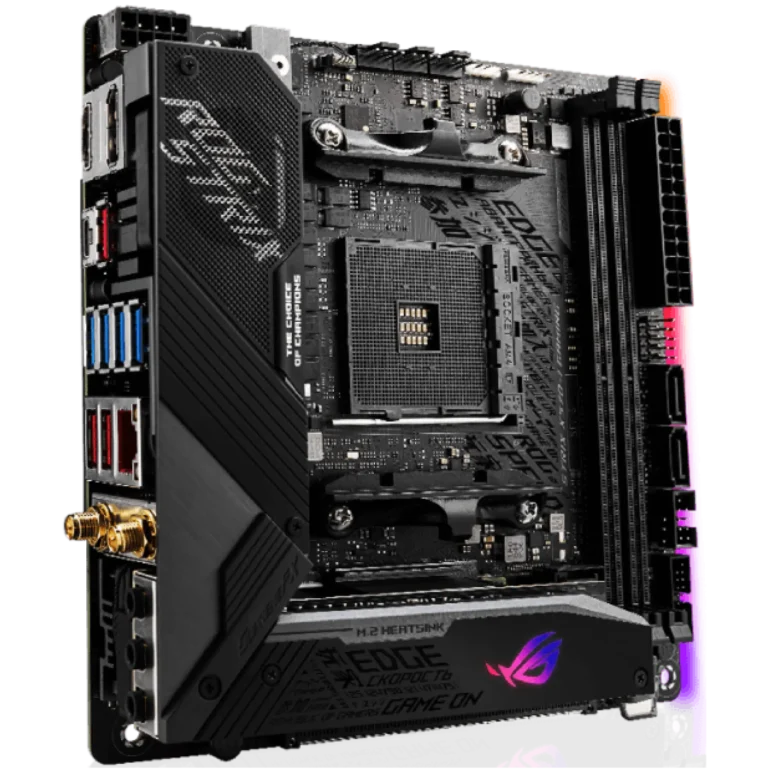

• Asus Rog Strix X570-I
• Socket AM4: Listo para los procesadores AMD Ryzen™ de 2da y 3ra generación para maximizar la conectividad y la velocidad con hasta dos unidades M.2, USB 3.2 Gen2 y AMD StoreMI
• Aura Sync RGB: Iluminación Aura Sync RGB exclusiva de ASUS, incluido el cabezal RGB y el cabezal Gen2 direccionable.
• Diseño de enfriamiento completo: Disipadores de calor VRM y PCH con ventiladores en miniatura, tubo de calor PCH incorporado, disipador térmico M.2 y placa posterior de aluminio con patrón de texto cibernético que agregan masa para ayudar a absorber más calor.
• Conectividad para juegos: Es compatible con PCIe 4.0, HDMI 2.0 y DisplayPort 1.4 y cuenta con conectores dobles M.2 y USB 3.2 de tipo A y de tipo C.
• Redes de juegos: Intel Gigabit Ethernet con ASUS LANGuard, Wi-Fi 6 (802.11ax) con soporte MU-MIMO y equipos de gateway a través de GameFirst V.
• 5-Way Optimization: Ajuste automatizado de todo el sistema, proporcionando overclocking y perfiles de enfriamiento a medida para su plataforma.
• Audio para juegos: Audio de alta fidelidad con SupremeFX S1220A, DTS® Sound Unbound y Sonic Studio III para llevarlo más profundamente en la acción.
• Gamer’s Guardian: ASUS SafeSlot y componentes premium para una máxima resistencia.
• AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
• Chipset AMD X570
• Memoria  2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  2 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
  2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
• Gráficos- Support DisplayPort 1.4 with max. resolution 8K 7680 × 4320 @60Hz
  – Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
  Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
  Multi-VGA output support : HDMI/DisplayPort ports
• Slots de Expansión1 x PCIe 4.0 x16 (x16 mode)
  1 x PCIe 3.0 x16 (x16 mode)
  1 x PCIe 3.0 x16 (x8 mode)
• Almacenamiento1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
  4 x SATA 6Gb/s port(s),
  1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
  1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
  3rd Gen AMD Ryzen™ Processors :
  2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
  AMD X570 chipset :
  Support Raid 0, 1, 10
• LANAnti-surge LANGuard
  ROG GameFirst Technology
  Intel® I211-AT
• Datos de redes inlámbricasIntel® Wi-Fi 6 AX200
  Supports channel bandwidth: HT20/HT40/HT80/HT160
  Up to 2.4Gbps transfer speed
• Bluetooth® 5.0
• Audio- LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.
  – DTS® Sound Unbound
  – Sonic Studio III + Sonic Studio Virtual Mixer
  SupremeFX8-Channel High Definition Audio CODEC S1220A
  – Dual OP Amplifiers
  – Impedance sense for front and rear headphone outputs
  – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  – High quality120dBSNR stereo playback outputand113dBSNR recording input
  – Supports up to 32-Bit/192kHz playback *2
  – Sonic Radar III
• Puertos USB4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue)
  4 x USB 3.2 Gen 2 port(s) (3 x Type-A+1 x Type-C)
  2 x USB 2.0 port(s)
  3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
  AMD X570 chipset :
  2 x USB 3.2 Gen 1 port(s) (2 at mid-board)

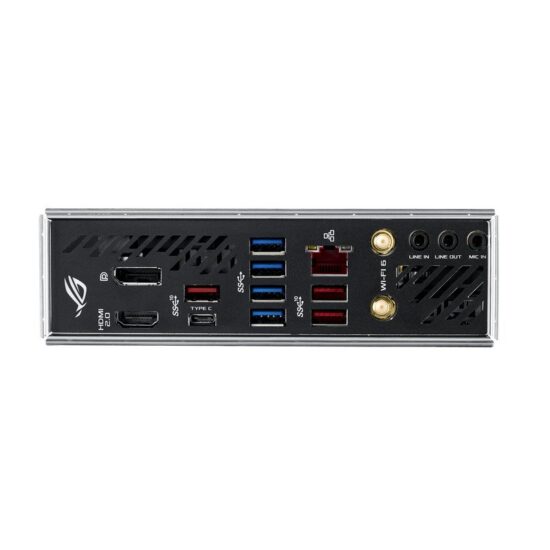

• Puertos I/O Traseros4 x USB 3.2 Gen 1 (blue)
  3 x LED-illuminated audio jacks
  1 x ASUS Wi-Fi Module
  3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
  Anti-surge LAN (RJ45) port
  1 x DisplayPort
  1 x HDMI
  1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
• Internal I/O1 x HS_FAN
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  1 x Aura RGB Strip Header(s)
  2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x Chassis Fan connector(s)
  1 x AAFP connector
  1 x Thermal sensor connector(s)
  1 x System panel connector
  1 x T_Sensor Connector
  1 x Speaker connector
  1 x PCH_FAN
  1 x Addressable Gen 2 header(s)
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s)
  1 x AIO_PUMP connector
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x Clear CMOS jumper(s)

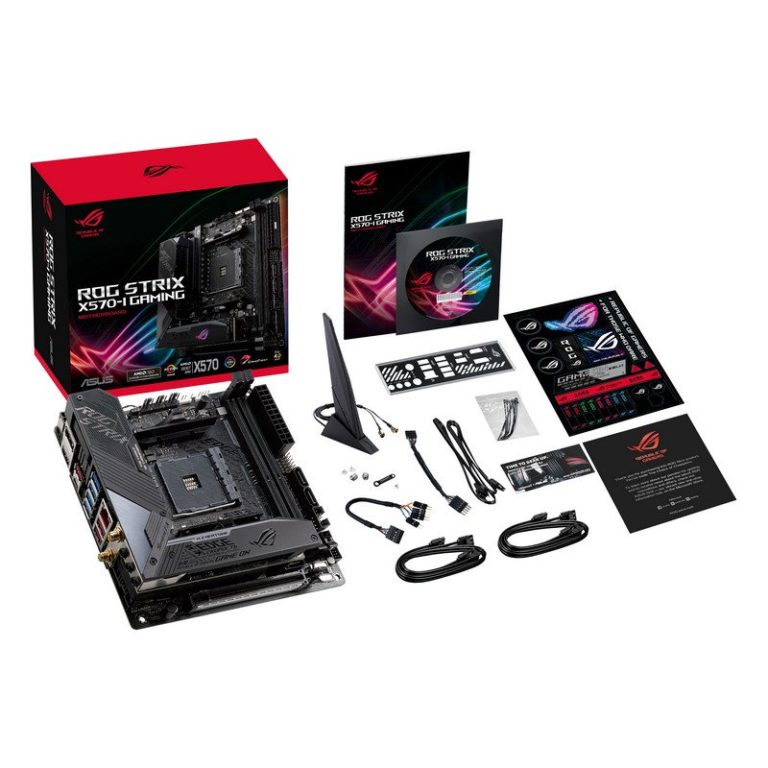

• Accessorios1 x AAFP Extension Cable
  1 x M.2 bracket
  1 x Panel cable
  2 x M.2 Screw Package
  1 x ROG Strix stickers
  1 x Cable ties pack(s)
  1 x Wi-Fi Antenna(s)
  1 x Extension cable for Addressable LED
  1 x ROG Thank you card
  User´s manual
  I/O Shield
  4 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
• Factor de formaMini ITX Form Factor
  6.7 inch x 6.7 inch ( 17 cm x 17 cm )
