Descripción

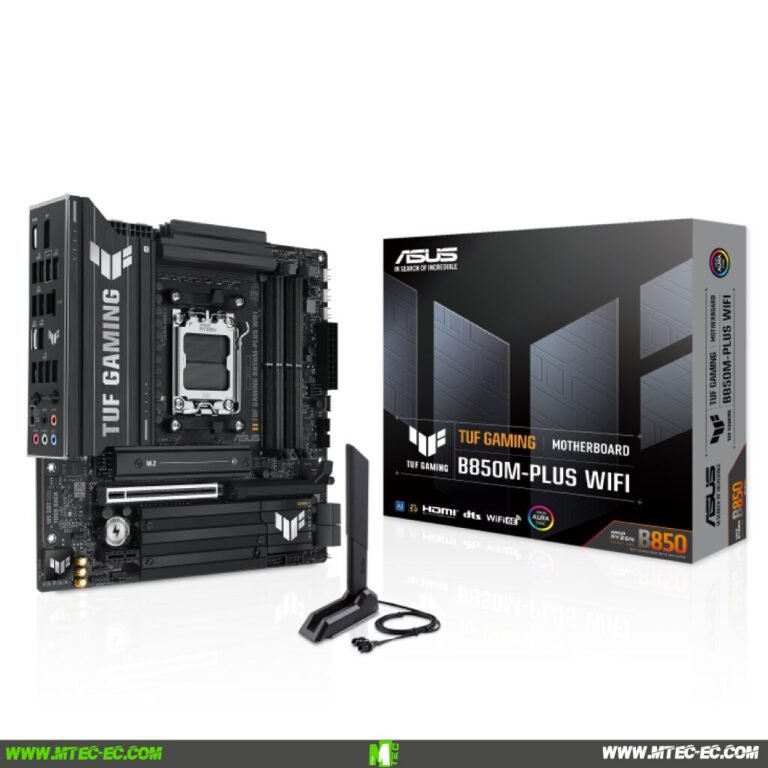

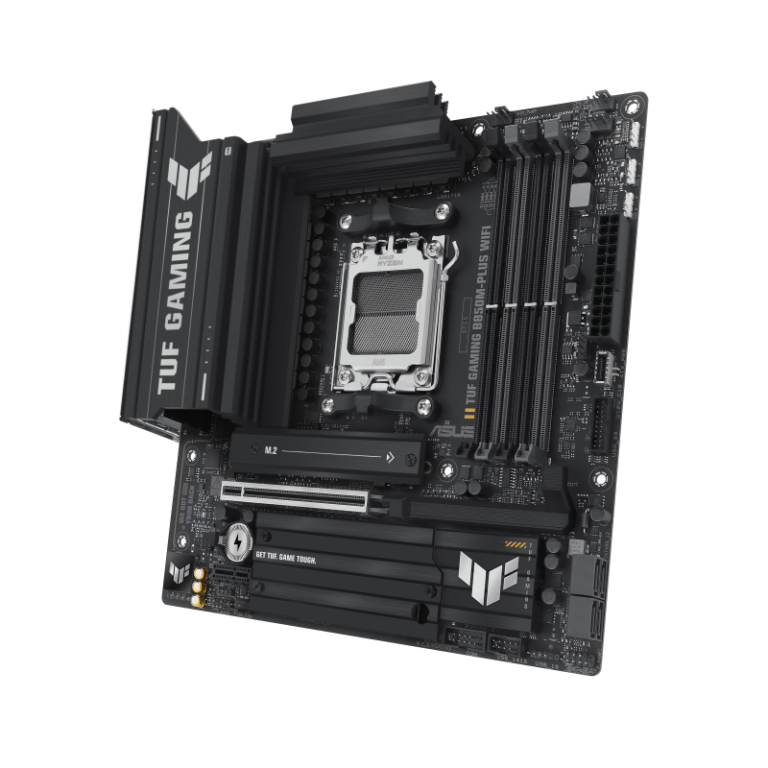

- Asus TUF Gaming B850M-Plus WIFI
- Model TUF GAMING B850M-PLUS WIFI
- CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
- Chipset AMD B850 Chipset
- Memoria 4 x DIMM slots, max. 256GB, DDR5
- Gráficos
- 1 x DisplayPort**
- 1 x HDMI™ port***
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
- AMD Ryzen™ 8000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
- AMD B850 Chipset
- 1 x PCIe 4.0 x1 slot
- Ethernet 1 x Realtek 2.5Gb Ethernet
- Wireless & Bluetooth
- Wi-Fi 6E 2×2 Wi-Fi 6E (802.11ax)
- Bluetooth® v5.3**
- Audio Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

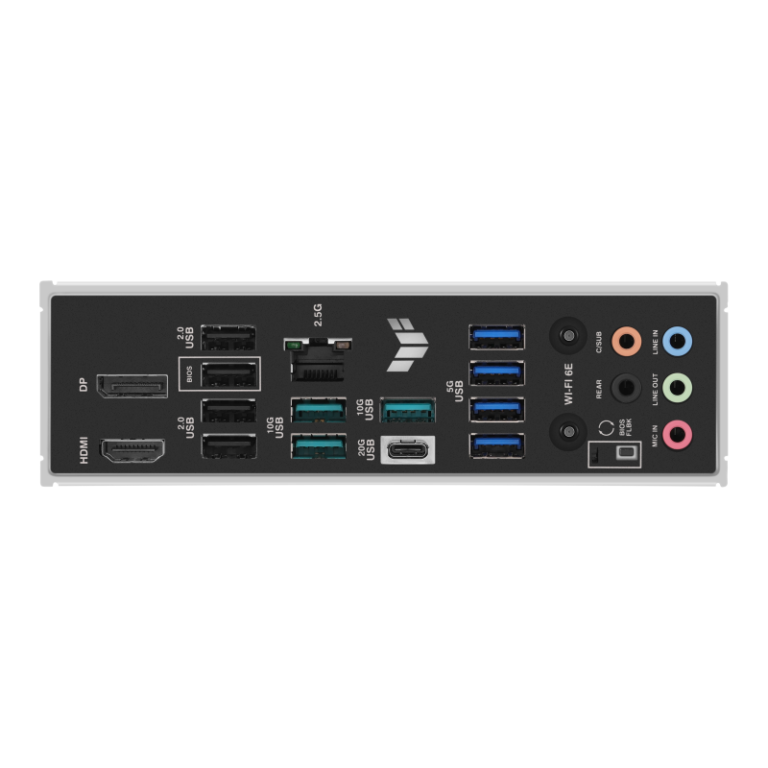

- Puertos de E/S del panel posterior
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (3 x Type-A)
- 4 x USB 5Gbps ports (4 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x BIOS FlashBack™ button
- Conectores de E/S internos
- Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 3 x 4-pin Chassis Fan headers
- Power Related
- 1 x 24-pin Main Power connector
- 2 x 8-pin +12V CPU Power connectors
- Storage Related
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 10Gbps connector (supports USB Type-C® )
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 3 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Clear CMOS header
- 1 x Chassis Intrusion header
- 1 x COM Port header
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x 10-1 pin Front Panel System header

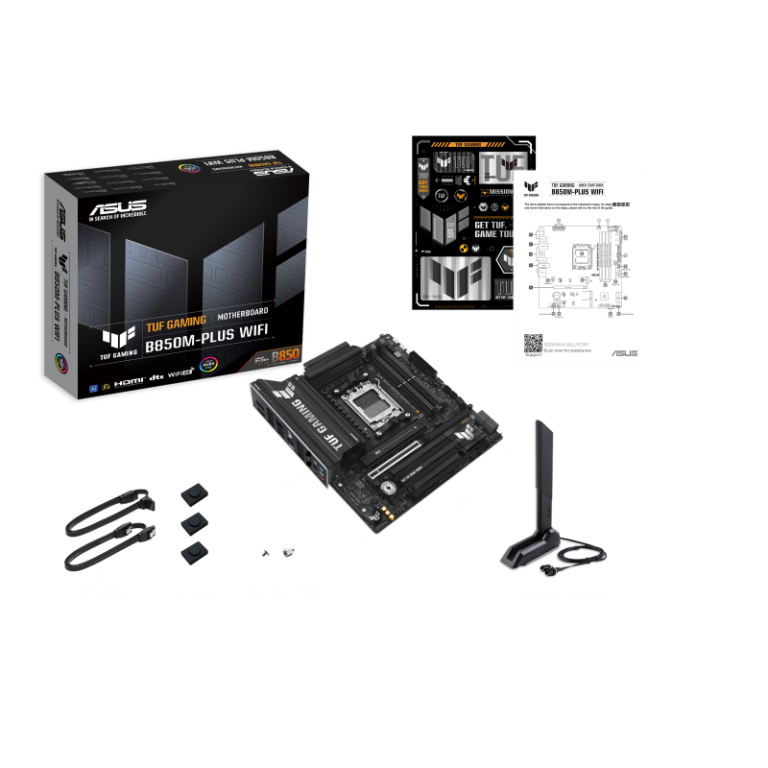

- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x ASUS WiFi Q-Antenna
- 1 x TUF GAMING sticker
- 2 x M.2 rubber packages
- 1 x Screw package for M.2 SSD
- Documentation
- 1 x Quick start guide
- Sistema operativo Windows 11, Windows 10 64-bit
- Factor de forma micro-ATX Form Factor
