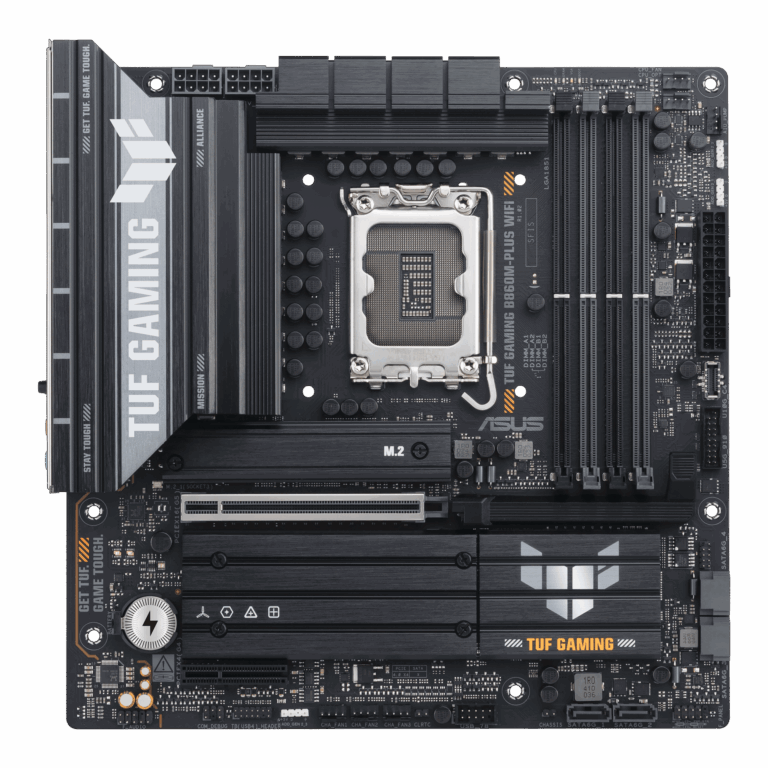

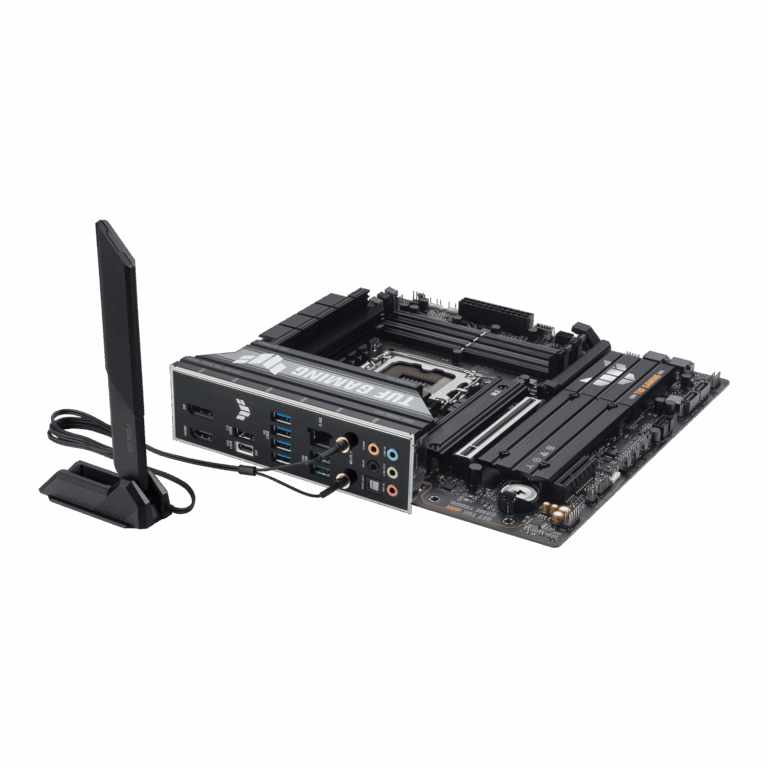

Asus TUF Gaming B860M-PLUS WIFI Mainboard LGA 1851

Descripción

Asus TUF Gaming B860M-PLUS WIFI
Chipset Intel® B860 Chipset
Memory 4 x DIMM slots, max. 256GB, DDR5
- Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Graphics
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output
- Ethernet 1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
- Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be)
- Bluetooth® v5.4***
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC

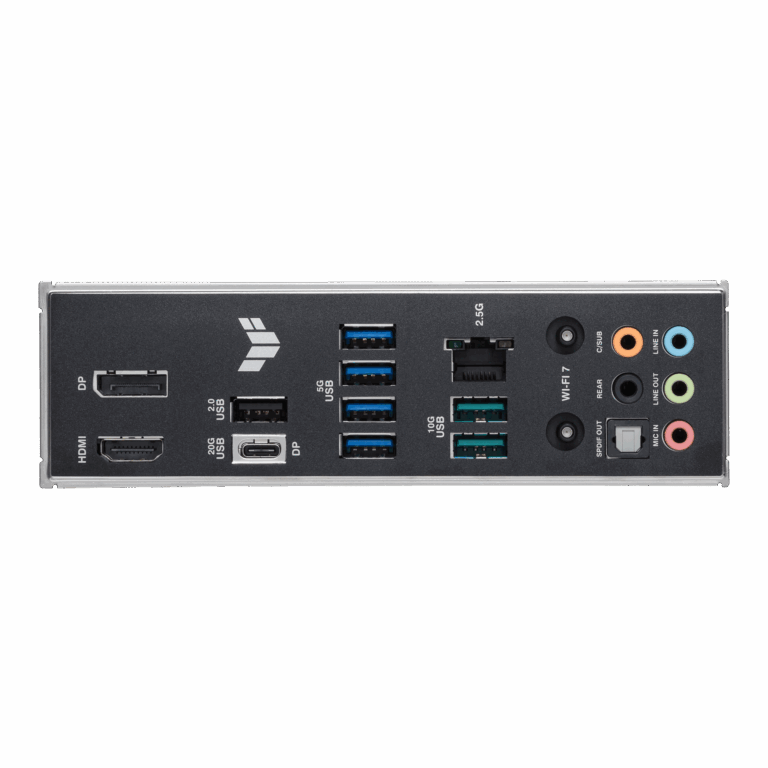

Back Panel I/O Ports
- 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
- 2 x USB 10Gbps port (2 x Type-A)
- 4 x USB 5Gbps ports (4 x Type-A)
- 1 x USB 2.0 port (1 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Wi-Fi Module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x Optical S/PDIF out port
Internal I/O Connectors
I/O Connectors Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 3 x 4-pin Chassis Fan headers
Power related
- 1 x 24-pin Main Power connector
- 2 x 8-pin +12V Power connectors
Storage related
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
USB
- 1 x USB 10Gbps connector (supports USB Type-C® )
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Clear CMOS header
- 1 x Chassis Intrusion header
- 1 x Front panel audio header (F_AUDIO)
- 1 x 10-1 pin Front System Panel header
- 1 x Thunderbolt™ (USB4®) header
Accessories
Cables
- 2 x SATA 6Gb/s cables
Miscellaneous
- 1 x ASUS WiFi Q-Antenna
- 2 x M.2 Rubber Packages
- 1 x TUF Gaming sticker
- 1 x Screw package for M.2 SSD
Documentation
- 1 x Quick start guide
Operating System
- Windows 11 (22H2 & later)
Form Factor
- mATX Form Factor
- 24.4 cm x 24.4 cm
