Descripción

• Model GP-UD850GM PG5
• Type Intel Form Factor ATX 12V
• PFC Active PFC (>0.9 typical)
• Input Voltage 100-240 Vac (full range)
• Input Current 12-6A
• Input Frequency 60-50 Hz
• Output Capacity 850W
• Dimension 150 x 140 x 86 mm

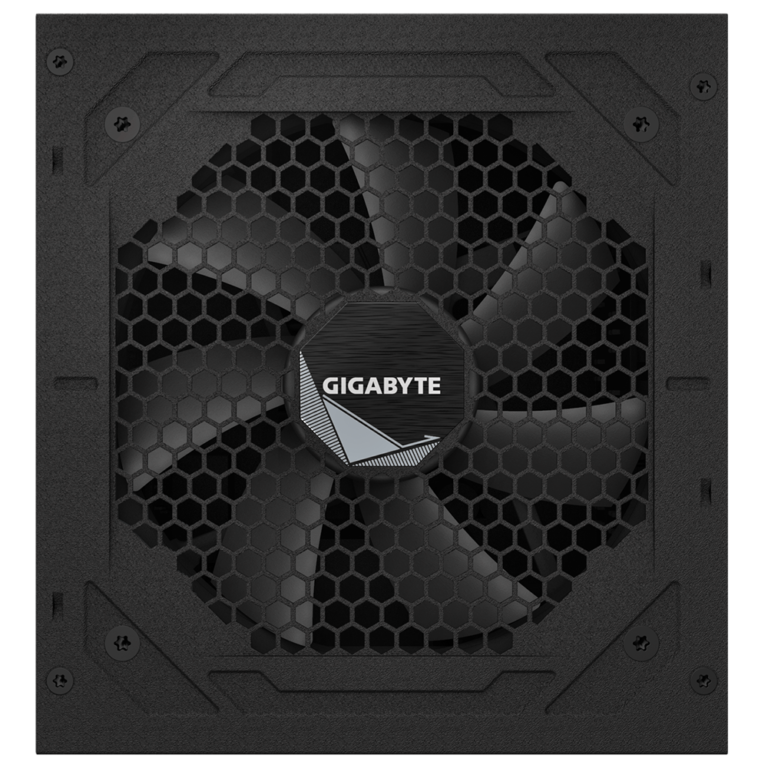

• Fan Type 120mm Hydraulic Bearing(HYB)fan
• 80 PLUS Gold
• Efficiency 90% at typical load
• MTBF >100,000 hours
• Protection OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal 100-150ms
• Hold Up Time >16ms
• Cable Type Flat, All black

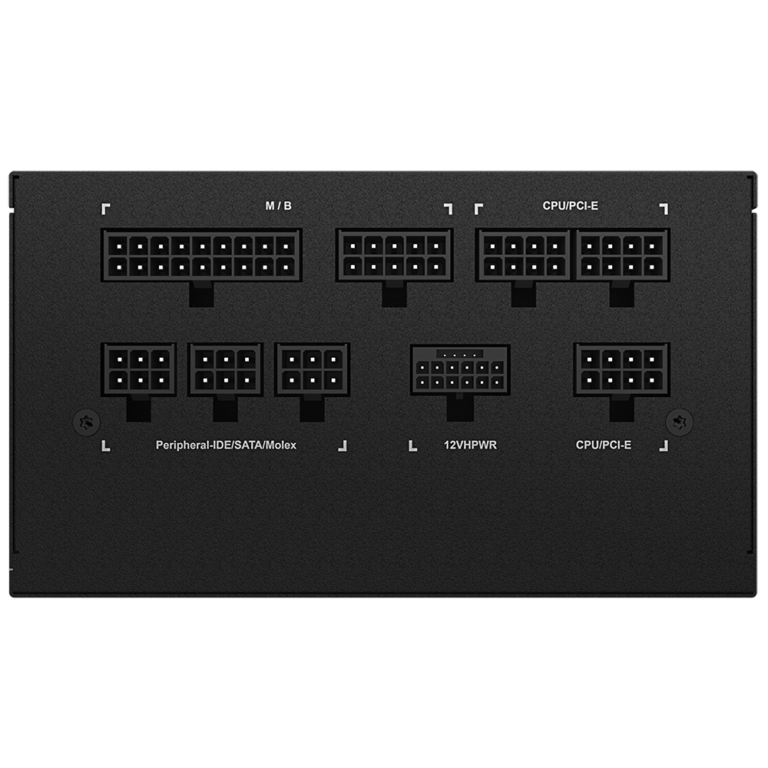

• Connectors
  • ATX/MB 20+4 Pin x 1 : 610mm*1
  • CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
  • PCI-e 12+4 Pin x 1: 700mm*1
  • PCI-e 6+2 Pin x 4 : 600mm+150mm*2
  • SATA x 8 :
  • 600mm+150mm+150mm+150mm*2
  • 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
